Rifle Barrel Tuning
for more information on ordering and delivery time.
Stock mounted, adjustable rifle barrel harmonic vibration tuning system.
chance to beat that bragging buddy of yours.
miss that trophy buck across the canyon this year!
The SmartStock tm (Stock
Mounted Adjustable Rifle Tuner) is an integration of the patented adjustable
rifle barrel harmonic tuning system formerly known as the Accurizer,
into either a new Bell and Carlson stock or into your present
compatible* rifle stock. Cut your groups in half!
Using this rifle
barrel tuner in various makes and calibers of
hunting, tactical, and varmint rifles we have
obtained consistent 100 yard 3 shot groups measuring one half to one quarter
inch or less. This allows you to achieve
equal to, or better than average custom rifle
accuracy without spending perhaps thousands
of dollars for a custom hunting, varmint or sniper rifle.
Here To Read Customer Results
Simply install your rifle action in the
SmartStock tm , adjust for your rifle barrel's taper as outlined in
the instruction manual, tune your rifle barrel for the smallest group, then
adjust your scope for the desired point of impact.
on links below to order
Accuracy System Installation
Accuracy System Kit $99.95**
More Information Call 503 792 3251
Some examples of different rifle stocks that
were modified to include the SmartStock rifle barrel tuner system are: A
standard Ruger Model 77 MK II in the .243 caliber and 100 Gr. bullets, we have
shot 4 three shot groups that averaged 0.179" with the smallest group being
0.118". Before tuning the rifle shot an average of 1.38" groups.
An Interarms Mark X Mauser in 30-06 caliber, we have obtained a 0.240"
group using Hornady Custom 168 Grain Match ammunition and a .283" group
using 180 grain Speer Boat Tail maximum velocity reloads. The rifle averaged
1.57" prior to being tuned. Our Remington 700 VS and PSS rifles
Average under 0.5 MOA 5 shot groups when tuned for Factory Match Ammunition,
with most 3 shot groups under 0.3 MOA.

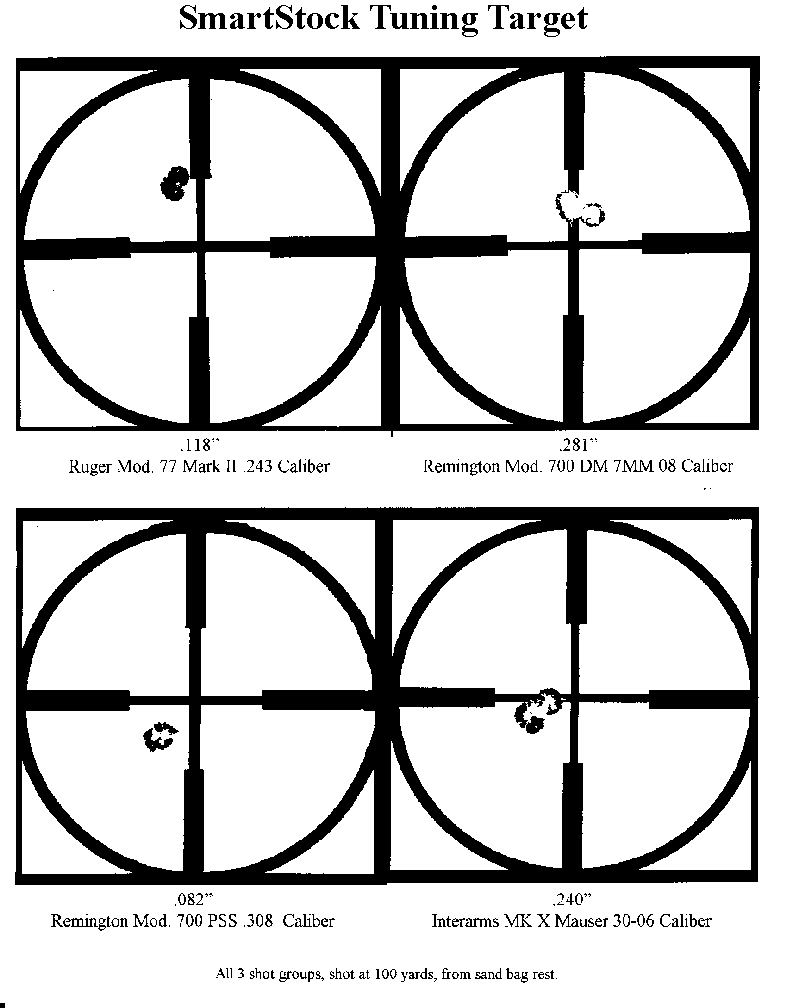

Proof!! Click Here to check out the targets
Rifle manufacturers as well as custom
ammunition handloaders have known for years that each rifle barrel has its own
harmonic vibration characteristics which affect accuracy. In order to
obtain the best accuracy, this rifle barrel vibration pattern must match the
ammunition being used. With the SmartStock, you can now tune the rifle
barrel vibration characteristics to its "sweet spot" to match your
choice of ammunition for superior rifle accuracy.
This is done without
disassembly of the rifle by a simple adjustment of
the rifle barrel tuner. When adjusted it incrementally moves a concaved
delrin block pressure point longitudinally along the bottom axis of the rifle
barrel. This tunes the rifle barrel much like a musician would tune a
guitar string to obtain a perfect pitch. The rifle barrel
tuner adjustment automatically locks into place with each half turn,
allowing precise control of the point in the harmonic arc of of the barrel to
cause bullet to exit the muzzle at the same vibrational null point each
time. The rifle barrel tuner accuracy assembly is
mounted out of sight in the forearm of your rifle stock.
Remember the targets we have shown are standard
factory rifles, with the only change being the installation and tuning of the
rifle barrel accurizing system!!
The SmartStock Rifle Barrel Tuner comes
with an Operation Manual that has complete easy to follow tuning instructions.
Why put up with mediocre accuracy from your
rifle any longer when you can now have better accuracy than the average custom
Now you can have better accuracy than most
custom made hunting rifles that would cost you many hundreds or even thousands
of dollars. You get the best of both worlds, you can keep your favorite rifle
and have the SmartStock Accuracy Tuning System in a top quality Bell and
Carlson Medalist tm replacement rifle stock, or in your present
system compatible stock*. Get the
extreme accuracy you have always wanted by simply by tuning your rifle's
The integrated rifle barrel harmonic tuning
system is so unique that it has been granted a U.S. Patent, and unlike some of
the other "accurizing systems", the SmartStock Accuracy System comes with a
30 day Satisfaction Guarantee**
the SmartStock Accuracy System for a full 30 days. If you are not
completely satisfied with it's ability to tune the accuracy of your rifle, just
send it back within 30 days and receive a full refund of the unit purchase price
of $100.00. Installation and shipping charges will not be refunded.
order for the SmartStock Accuracy System to be installed in your present stock,
it must meet the following requirements. It
must be a one piece stock. It
cannot be made of plastic material or have a plastic tip if a wood stock. It must measure at least 3/4" thick
from the bottom of the barrel channel to the bottom of the stock at the
forend. If it is a fiberglass stock, it must not be foam filled in the
forend, it has to be solid. Wood and laminate stocks are ok as long as
they meet the forend thickness requirement and do not have a plastic tip. Because
the installation of the SmartStock Accuracy System is a modification to the Bell
and Carlson stock they will not honor their repair or replacement warranty once
it has been installed.
Note: SmartStock Kit requires a gunsmith or machine shop with overhead milling equipment to
properly install. Click here for instructions.
U.S. Patent #5423145
